CT Shorting Links: Essential for CT protection
Current transformers (CTs) are critical components in electrical systems, but they can become deadly if not handled properly. CT shorting links serve as essential safety devices that prevent dangerous high voltages when CT secondary circuits are opened. This comprehensive guide explores everything you need to know about CT shorting links, their practical applications, safety implications, and best practices.
What is a CT Shorting Link?

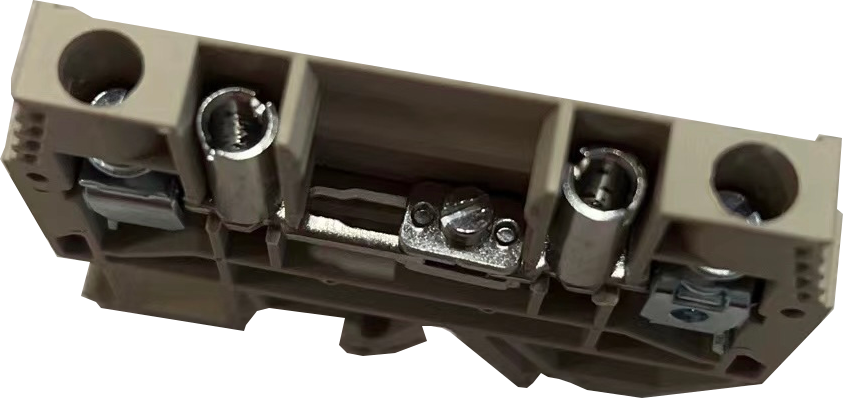

A CT shorting link is a safety device used to create a short circuit across the secondary terminals of a current transformer. This copper or brass link ensures that the CT secondary remains closed even when metering or protection equipment is disconnected, preventing the formation of dangerous high voltages.
Key Components and Design
- Material: Typically made of copper or brass for excellent conductivity
- Configuration: Available in various terminal arrangements (single-pole, multi-pole)
- Current Rating: Designed to handle the full secondary current of the CT
- Insulation Class: Appropriate for the voltage level of the application
How CT Shorting Links Work
When a CT’s secondary circuit is opened without a shorting link, the primary current continues to flow, but the secondary current drops to zero. This creates an open circuit condition that can generate extremely high voltages across the secondary terminals, potentially reaching several thousand volts.
Practical Examples & Applications
Usage in Switchgear Panels
In switchgear panels, CT shorting links are essential for safe maintenance operations:
- MCC Panels: Motor control center panels use shorting links when replacing meters or relays
- Distribution Panels: Main distribution panels require shorting during CT ratio testing
- Control Panels: Process control systems use them during calibration procedures
Metering Circuits Applications
Energy metering circuits frequently utilize CT shorting links for:
- Revenue metering maintenance in commercial buildings
- Submetering installations in industrial facilities
- Power quality analyzer connections and disconnections
- Smart meter retrofitting projects
Real Scenario Example: Industrial Panel Maintenance
Consider a 750 kVA transformer substation where maintenance technicians need to replace a power meter:
- Before disconnection: Install CT shorting links across all three CT secondary terminals
- During maintenance: Safely disconnect meter leads without voltage hazard
- Meter replacement: Install new meter while CTs remain safely shorted
- Reconnection: Connect new meter, then remove shorting links last
This procedure prevents the dangerous voltage spike that could reach 15,000V or higher in an open CT secondary.
Why CT Shorting Links are Used
Safety: The Primary Concern
Personnel safety is the paramount reason for using CT shorting links:
- Prevents electrocution from high-voltage secondary circuits
- Eliminates arc flash hazards during maintenance
- Protects against unexpected voltage surges
- Ensures compliance with electrical safety standards
Continuity of CT Circuit During Maintenance
Circuit continuity benefits include:
- Maintains proper CT operation during equipment servicing
- Prevents CT core saturation and overheating
- Allows safe disconnection of meters, relays, and instruments
- Enables testing and calibration without system shutdown
Avoiding Open Circuit Hazard
The open circuit hazard is eliminated through:
- Continuous current path in the secondary circuit
- Prevention of dangerous voltage buildup
- Protection of CT insulation from voltage stress
- Maintenance of system reliability and safety
What Happens if CT Shorting Link is Not Used?
Dangerous High Voltage Generation
Without proper shorting, catastrophic consequences can occur:
- Voltage levels: Can exceed 10,000V in typical installations
- Arc formation: High-energy arcs can cause severe burns
- Equipment damage: Connected instruments may be destroyed
- Fire hazard: Overheated components can ignite surrounding materials
Equipment Damage and Personnel Risk
Specific risks include:
- Insulation breakdown in connected cables and equipment
- CT winding damage due to excessive voltage stress
- Destruction of meters, relays, and control equipment
- Fatal electrocution risk for maintenance personnel
Example: CT Open Circuit Incident
A real-world example occurred at a manufacturing facility where a technician disconnected a CT secondary without installing a shorting link:
Incident details:
- CT ratio: 1000:5A
- Primary current: 800A
- Result: Secondary voltage reached approximately 12,000V
- Outcome: Complete destruction of the power meter, damaged cable insulation, and a near-miss electrical accident
The formula for open circuit voltage is:
[ V_{secondary} = I_{primary} \times \frac{N_{primary}}{N_{secondary}} \times R_{total} ]
Where the resistance can be extremely high in an open circuit, leading to dangerous voltage levels.
Best Practices for CT Shorting Link Installation
Stepwise Practical Tips
Installation procedure:
- Verify CT specifications before selecting shorting links
- De-energize the system when possible (Lock-Out/Tag-Out)
- Install shorting links first before disconnecting any equipment
- Use proper PPE including insulated gloves and arc-rated clothing
- Test connections to ensure proper contact
- Document the procedure for future reference
Do’s and Don’ts
DO’s:
- ✅ Always install shorting links before disconnecting CT secondaries
- ✅ Use properly rated links for the CT current
- ✅ Inspect links regularly for corrosion or damage
- ✅ Train all personnel on proper procedures
- ✅ Follow manufacturer specifications exactly
- ✅ Use appropriate torque values for connections
DON’Ts:
- ❌ Never disconnect CT secondaries without shorting links
- ❌ Don’t use improvised shorting methods
- ❌ Never ignore manufacturer’s installation guidelines
- ❌ Don’t assume CTs are safe because primary appears de-energized
- ❌ Never work on CT circuits without proper training
- ❌ Don’t skip safety verification steps
Additional Safety Considerations
Maintenance schedule:
- Inspect shorting links annually for corrosion
- Verify torque values during scheduled maintenance
- Replace links showing signs of overheating or damage
- Keep spare links readily available for emergency use
Training requirements:
- Ensure all electrical personnel understand CT safety
- Provide hands-on training with actual shorting link installation
- Review incident reports and lessons learned
- Maintain certification records for CT work
Conclusion
CT shorting links are indispensable safety devices that protect both personnel and equipment in electrical systems. Their proper use prevents dangerous high voltages, equipment damage, and potentially fatal accidents. Understanding their applications, installation procedures, and safety implications is crucial for anyone working with current transformers.
By following established best practices, using properly rated equipment, and maintaining a strong safety culture, electrical professionals can ensure safe and reliable CT operations. Remember: when working with current transformers, safety should always be the top priority, and CT shorting links are your first line of defense.
